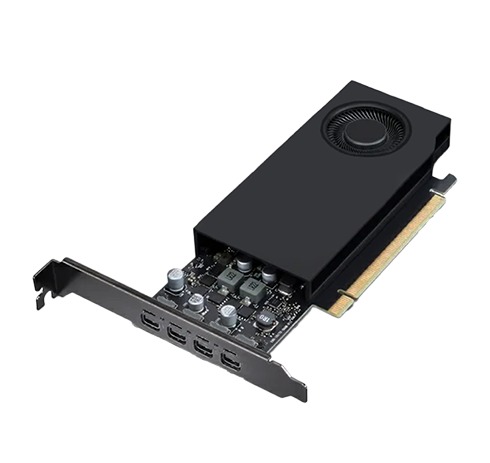

LV-N403
New

LV-N403

Specialized graphics cards are required to support the high resolution output of medical monitors.

Technical Specifications

LV-N403

Model
LV-N403
Max resolution
4200 × 2800 (60Hz)
BUS
PCI Express 4.0 x 8
Interface
Mini DisplayPort × 4 (DisplayPort ver 1.4 compliant, Daisy chain supported)
Memory
4GB
Color Mode
Color 8-, 16-, 32-bit/pixel (10-bit grayscale and 30-bit color with DisplayPort)
OS
Windows® 11, Windows® 10
Max Power Consumption
50W
Required System Power
Recommend: 300W or above
Outline(mm)
164.15 × 68.9
Product Support



Monochrome Monitors
MS-S200, MS-S300, MS-S500, MS-S500 Dualstand
Color Monitors
CL-S200, CL-R211, CL-S300, CL-S500, CL-S500 Dualstand
CL-S600, CL-R813, CL-S1200
